ADVANCED VSD & IRRIGATION CONTROL

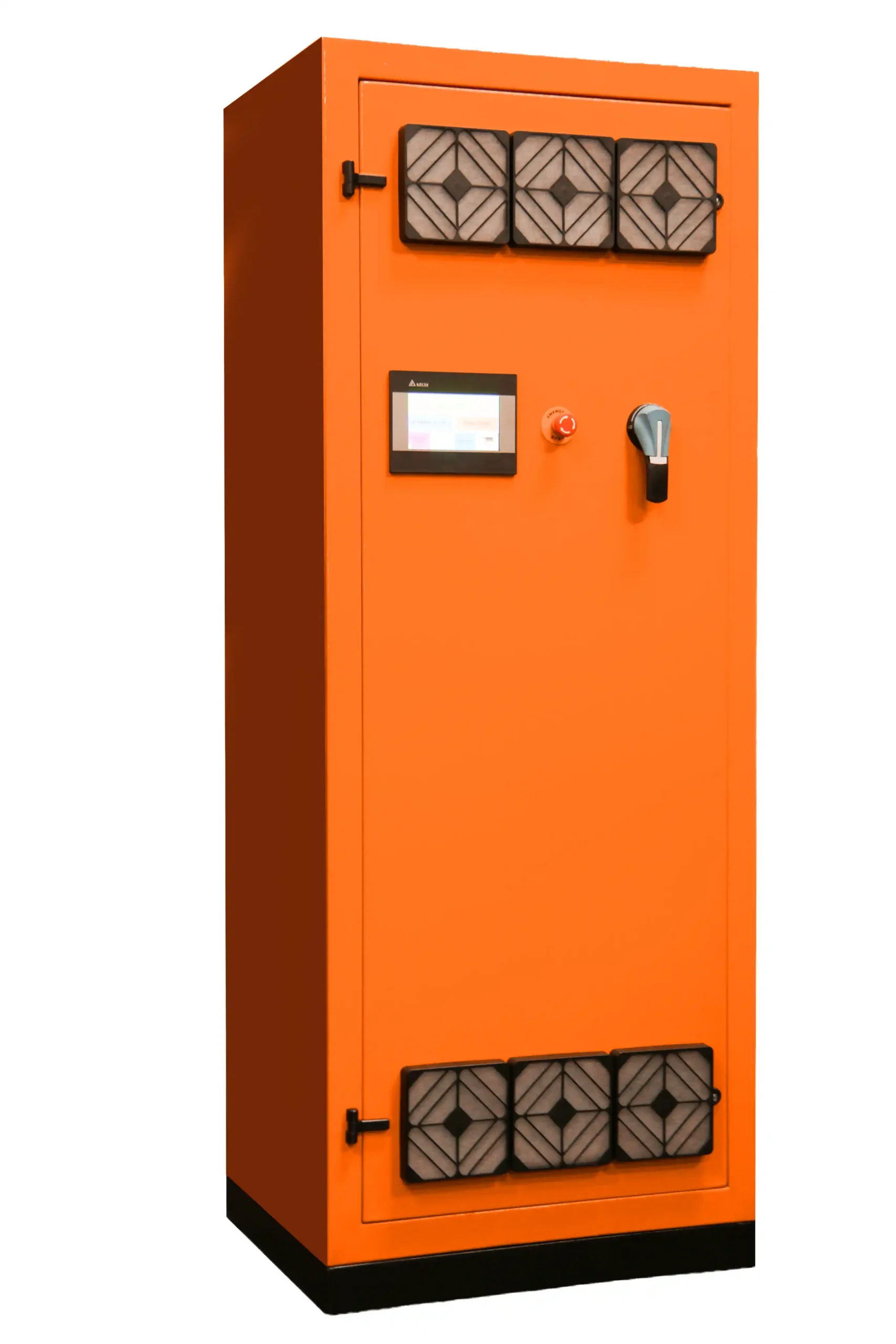

MAXI+
Advanced pump, irrigation and fertigation control in one comprehensive VSD panel.
MAXI+ SPECIFICATIONS
Delta VSD with 10" Touch Screen.
Powder-Coated Sheet Metal Stand with Circuit Breaker, VSD Fuse & Lightning Protection.
Unlimited Pressure Settings with 48 Relay Outputs to Valves.
4,732 Automatic Irrigation Program Options.
Manual Time, Flow, EC & pH Control.
Pump Priming, Pipe Filling & Dry Run Protection.
Motor Current Limiting, Safety Switch & Eskom Tariff Control.
Fertigation Control with Support for 4 Fertigation Tanks.
Pressure, Flow, Motor Load, Speed, Current & System Monitoring.
Auto Restart After Power Failure & Remote Control Capable.
INTO THE PANEL.
CAPABLE
FERTIGATION
SCREEN
CAPABLE
CONTROL
EFFICIENT
BUILT AROUND THE APPLICATION
BUILT FOR ADVANCED PUMP &
IRRIGATION CONTROL
The MAXI+ brings variable speed drive control, irrigation programming, fertigation and system monitoring together in one control panel.
Rather than controlling motor speed in isolation, the MAXI+ is designed around the wider pumping and irrigation process — from pressure and flow control to valve operation, fertigation and system protection.
IRRIGATION PROGRAMMING
Configure automatic irrigation programmes around the operating requirements of the system, with extensive programme options and relay outputs available for valve control.
PRESSURE & FLOW CONTROL
Use the VSD to respond to changing system requirements while controlling pressure and flow according to the needs of the pumping application.
FERTIGATION CONTROL
MAXI+ supports fertigation control for up to four fertigation tanks, together with manual time, flow, EC and pH control.
SYSTEM PROTECTION
Pump priming, controlled pipe filling, dry-run protection, motor current limiting and safety inputs help protect the pump, motor and wider system during operation.
IRRIGATION MANAGEMENT.
With touchscreen operation, system monitoring, automatic restart and remote-control capability, MAXI+ gives the operator a central point for managing key functions across the pumping and irrigation system.
Discuss Your ApplicationCONTROL & MONITORING
MORE THAN MOTOR SPEED CONTROL
MAXI+ combines VSD operation with the control, monitoring and automation functions needed to manage a more advanced pumping and irrigation system from one panel.
10" TOUCHSCREEN CONTROL
The MAXI+ uses a 10-inch touchscreen to provide an operator interface for managing the panel's control and irrigation functions.
MONITOR KEY OPERATING DATA
Monitor pressure, flow, motor load, speed, current and system information during operation.
CONTROL BEYOND THE PANEL
Remote-control capability provides an additional option for operating the system where the application requires it.
DESIGNED TO KEEP THE SYSTEM MOVING
Automatic restart after a power failure helps return the system to operation without requiring a manual restart at the panel.
ONE PANEL. MULTIPLE FUNCTIONS.
VSD control, irrigation programming, fertigation, system protection and monitoring are brought together in a single control panel.
COMPLETE SYSTEM.
EXPLORE THE PFS RANGE
VIEW OTHER VSD PANELS
Explore the Power Factor Systems VSD range for pump, irrigation and motor control applications.
LET'S TALK ABOUT YOUR APPLICATION
READY TO FIND THE RIGHT VSD SOLUTION?
Tell us about your pump, motor or application requirements and the Power Factor Systems team will help you identify the right VSD panel and control solution.
